Previously prepped - A. Kong, S. Liu, A. Tam

• Gate valve assembly put together
•  All bolts torqued to >=55Nm
• Gate valve Cart moved into hotcell

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

April 23, 2025 - A. Kong, C. Fisher, S. Liu, M. Genix, A. Tam

• Moved standoffs to the taller position on the cart
• Weight added to cart to bring CG towards centre of cart.
  • Cart rolling away and hitting lip of lift table could tip (especially with gate valve in higher position)
• Gate valve moved onto cart via 1000kg crane
  • Sling used between openings in gate valve assembly frame members
• Complete gate valve assembly with hard stop and bellows movement retainer
• Dust cover removed, sealing (o-ring) flange removed,
• vacuum and sealing surfaces cleaned,
• hard stops (gate valve – shield plug) installed, bellows limit brackets installed
• Bagged all items removed to keep them clean


QDS seal installed BY HAND onto gate valve tapered flange

• Seal tabs align with a cutout feature on the flange (3 tabs, 120O spacing @ 10:00, 2:00, 6:00)
• These cutouts allow the tabs to bend towards the flange without obstructing sealing surfaces

RH Assumptions (UNTESTED)

• in the situation of a gate valve assembly replacement:
  • Seal should be pre-installed onto gate valve flange using soft jawed clamps (bought, designed, modified)
  • Assembly should come bagged and bag removed at the point of installation to reduce contamination on  vacuum and sealing surfaces
• if seal replacement on its own (eg. during extraction electrode replacement)
  • Seal should arrive on a clean stand through tool port and oriented in installation position
  • two manips to place seal onto flange; grabbing top two tabs (UNTESTED but confident because of taper on seal retainer)
  • clamps are TBD (bought, designed, modified)

Installing gate valve assembly proposed sequence of operations:

• Using Hotcell lift table, raise gate valve assembly so that Shield-plug-to-gate-valve screw can engage, leaving ~1/8 inch between Shield-plug and gate-valve-assembly
• Slide gate-valve with cart into rough x-y position (use camera views for alignment)
• Start thread on shield-plug-to-gate-valve screw, until weight is released from cart.
• Release gate valve from cart by unscrewing 2 bolts holding it
• Torque shield-plug-to-gate-valve screw fully to align hard-stop threaded holes
• Lightly install hard-stop screws
• Crack loosen the shield plug-gate valve screws
• Final torque on hardstop screws
• Final torque on shield plug-gate valve screws

Additional Notes:

• Tested manipulator access/reach to the hard-stop screws)
  • (better access may be achieved by lowering torque tool handle)
• Nut housing for shield plug to gate valve assembly screws/nuts not used as final bolts will react differently than test shield-plug

To be tested:

• Gate valve seal chain clamp using torque multiplier and reaction arm.

 ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

April 30, 2025 - C. Fisher, A. Kong, K. Ng, A. Tam

Preparations:

• Chad programmed 4 torque ratchet wrench settings in CW (12 Nm & 24 Nm) and CCW (12 Nm & 24 Nm)
• Chad had procured and dry fit Norbar HT3-1000 torque multiplier for this operation

Chain Clamp Sealing/Tightening procedure:

• Shielding on the outside of the RIB side structure needs to be taken off to allow QDS reaction head tool to have access to structural components
• Chain clamp brought together lightly by turning turnbuckle screws lightly by hand (this would be done with a smaller air or electric ratcheting wrench in the future)
  • Using several camera angles to verify that the bellow flange is engaging properly within the chain clamp
  • A soft tipped tool held by one manipulator can be used to push the flanges together, while the other manipulator starts cinching down on one of the chain clamp turnbuckle screws
• Once positioning had been confirmed, turnbuckle screws were tightened on the first 12 Nm program with the the Norbar HT3-1000 torque multiplier to achieve ~60Nm

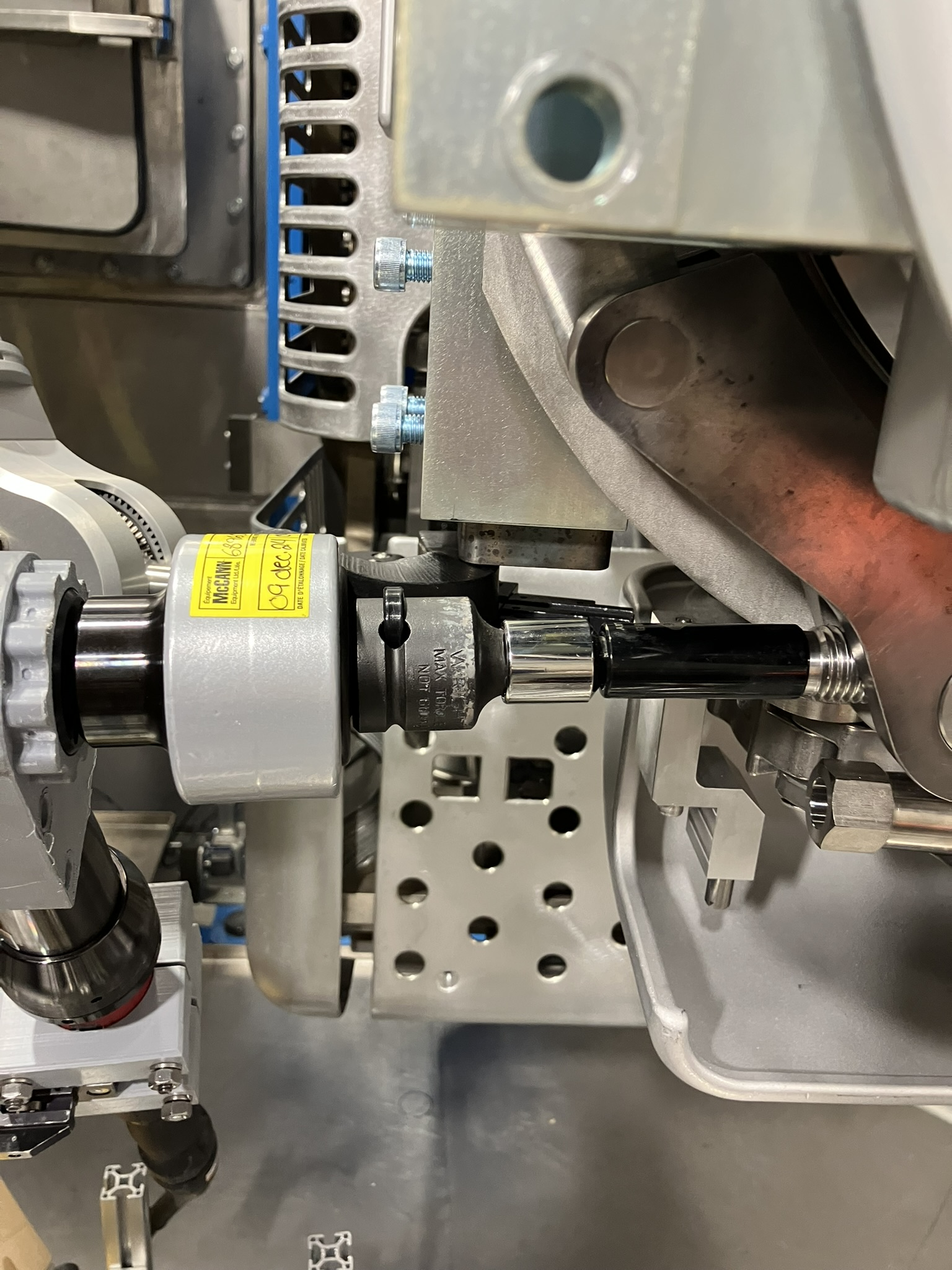

  • With the torque multiplier, the right manipulator held onto the torque ratchet wrench and the left manipulator brought the reaction head into contact with structural components on the FE

  • Bottom screw reaction against FE kinematic mount, top screw reaction against RIB side of gate valve bracket.
• Once both screws have been tightened to ~60Nm, they were both tightened to their final 120 Nm (24Nm on the electric torque ratchet wrench)


Notes:

• torque multiplier is heavy, may be a good idea to use a tool balancer with the torque tool
• Stepping up the torque in a more increments may yield a more even clamp for the gasket to seal
• As a check, a 20-200Nm click style torque wrench was used to verify that approximately 120Nm was reached
  • 110 Nm - 120 Nm was required to continue tightening the turnbuckle screws
